349nm激光器| Wavelength (nm)波長 | 343±1 | |
| Operating mode工作方式 | Frequency conversion of Q-switched pulsed laser | |
| Max average power (mW)*功率 | 1~50 | |
| Single pulse energy (µJ)單脈沖能量 | 0. 1~7 | |
| Pulse duration (ns)脈寬 | ~7 | |
| Peak power (kW)峰值功率 | 0.01~ 1 | |
| Rep. rate (kHz) | QCW脈沖頻率 | Between 4k-8kHz. |
| Ave power stability (over 4 hours)功率穩定性 | <5%, <3% | |
| Transverse mode光斑模式 | Near TEM00 | |
| M2 factor光束質量 | <2.0 | |
| Beam diameter at the aperture (mm)光斑尺寸 | Elliptical (4:1), Beam spot 0.5*2mm | |
| Polarization ratio偏振比 | >50:1, Horizontal (Vertical Optional) | |
| Warm-up time (minutes)預熱時間 | <5 | |

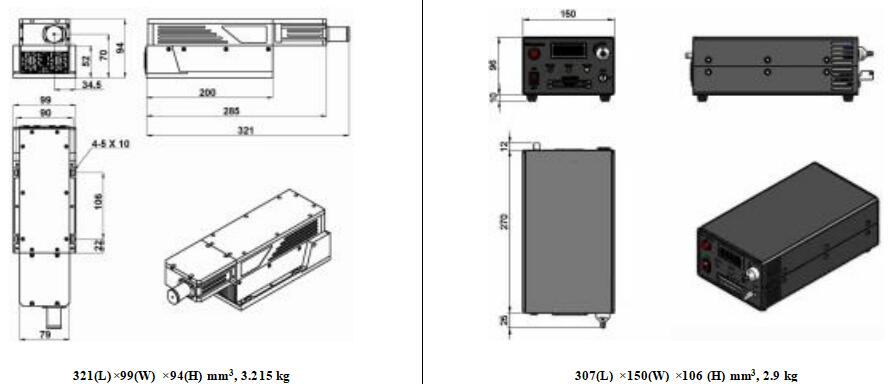

| Beam height from base plate (mm)中心高 | 70 | |
| Operating temperature (°C)工作溫度 | 10~35 | |
| Power supply (90-264VAC)電壓 | 220v | |
| Warranty壽命 | 1 year | |
