305nm激光器| Wavelength (nm)波長 | 305±2 |
| Operating mode工作方式 | Electro-optic Q-switched |
| Average power (W)平均功率 | 1~50mW (50mW@5kHz) |
| Average power (W) = Single pulse energy (mJ) * Rep. rate (kHz) | |
| Single pulse energy ( µJ)能量 | 1~ 10( 10µJ @5kHz) |
| Rep. rate (kHz)頻率 | 5~ 10 |
| Pulse duration (ns)脈寬 | ~3 @5kHz |
| Peak power (kW)峰值功率 | 1~3.3 (3.3kW@ 10kHz) |
|
Ave power stability (over 4 hours) 功率穩定性 |
<3%, <5% |
| Warm-up time (minutes)上升時間 | < 10 |
| Beam divergence, full angle (mrad)發散角 | <5 |
| Beam diameter at the aperture ( 1/e2,mm)光斑尺寸 | <5 |

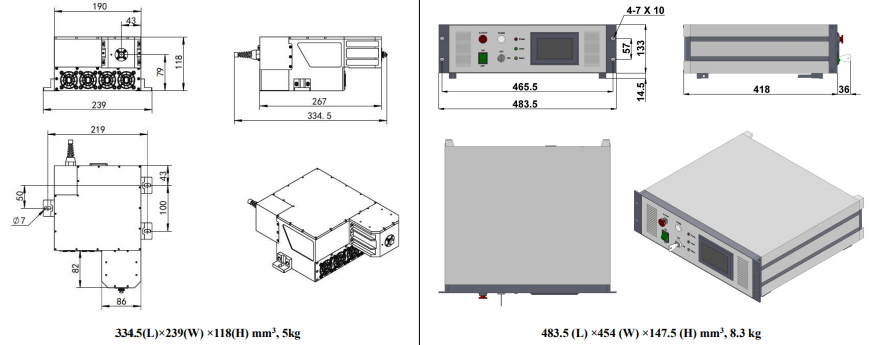

| Beam height from base plate (mm)中心高 | 79 |
| Cooled method制冷 | Water cooled |
| Operating temperature (C)工作溫度 | 10~35 |
| Power supply (220/ 110VAC)電源 | PSU-AOM (3U) |
| Expected lifetime (hours)壽命 | 10000 |
| Warranty period保修 | 1 year |
