Output power (mW)功率

1-300

Power stability (rms, over 4 hours)穩定性

<3%

Transverse mode光斑模式

TEM00

Longitudinal mode縱模模式

Single

Operating mode工作方式

CW

Spectral line width (nm)線寬

<0.00001

Coherent length (m)

>50

Noise of amplitude (rms, 1Hz~20MHz)噪聲

<1%, <0.5%

M2 factor光束質量

<1.2,

Beam diameter at the aperture (1/e2, mm)光斑尺寸

<1.5

Beam divergence, full angle (mrad)發散角

<1.5

Polarization Ratio偏振比

>100:1, Vertical (Horizontal Optional)

Warm-up time (minutes)預熱時間

<10

Pointing stability after warm-up (mrad)光束指向穩定性

<0.05

Frequency shift over 8 hours (MHz) (Optional)

<±200

Frequency shift with Temp (MHz/°C) (Optional)

<200

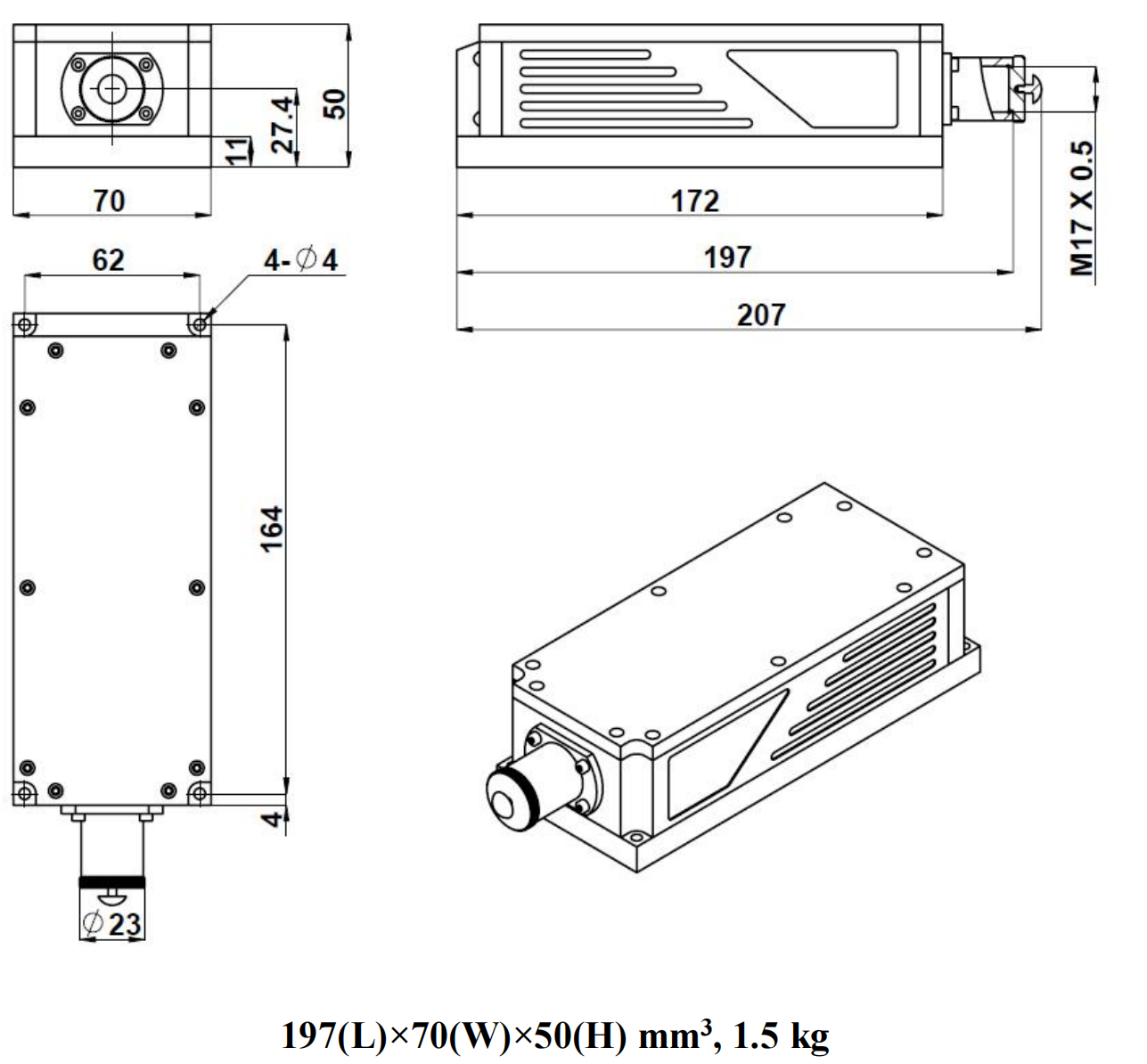

Beam height from base plate (mm)中心高

27.4

Laser head consumption(W)功率

15 (typical) , <25 (40°C)

Max. Laser Head Base plate Temp (°C)最高溫度

50

Operating Temperature (°C)工作溫度

10-35

Power supply (90-264VAC)供電

220v可調

Expected lifetime (hours)壽命

10000

Warranty保修

1 year
