532nm調Q激光器

產品說明：532nm被動調Q脈沖激光器特點：1，被動調Q 2，重復頻率可調 Easy use maintenance free Longlife operation High efficiency High reliability Model No. LLR532H-Q Wavelength 532nm Spatial Mode TEM 00 Average Output Power 50~200

訂購熱線：0431-81759561

產品詳細

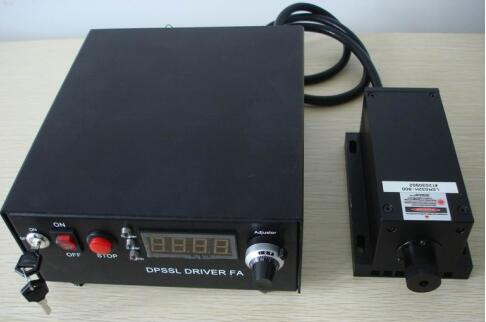

532nm被動調Q脈沖激光器

特點：1，被動調Q
2，重復頻率可調

Easy use & maintenance free
Longlife operation
High efficiency
High reliability

Model No.

LLR532H-Q

Wavelength

532nm

Spatial Mode

TEM₀₀

Average Output Power

50~200mW

Single pulse energy

5-30uJ

Pulse Width

20-30ns

Peak Power

300~1000W

Repeat rate

5~30KHz

Beam Spot Shape

Circular, aspect ratio<1.1:1

Pointing Stability

<0.05 mrad

Beam Diameter(1/e²)

<1.5 mm

Beam Divergence

<1.5 mrad

Power Stability*

<±3% per 2 hrs

Beam Height

29mm

Temperature Stabilizing

TEC

Warm Up Time

<5 minutes

Beam Quality (M²)

Optimum Operating Temperature

20~30^oc

Storage Temperature

10~50^oC

MTTF**

10,000 hrs

Laser head dimensions

155(L)x77(W)x60(H)mm3

Power Supply

220v數(shù)顯可調
